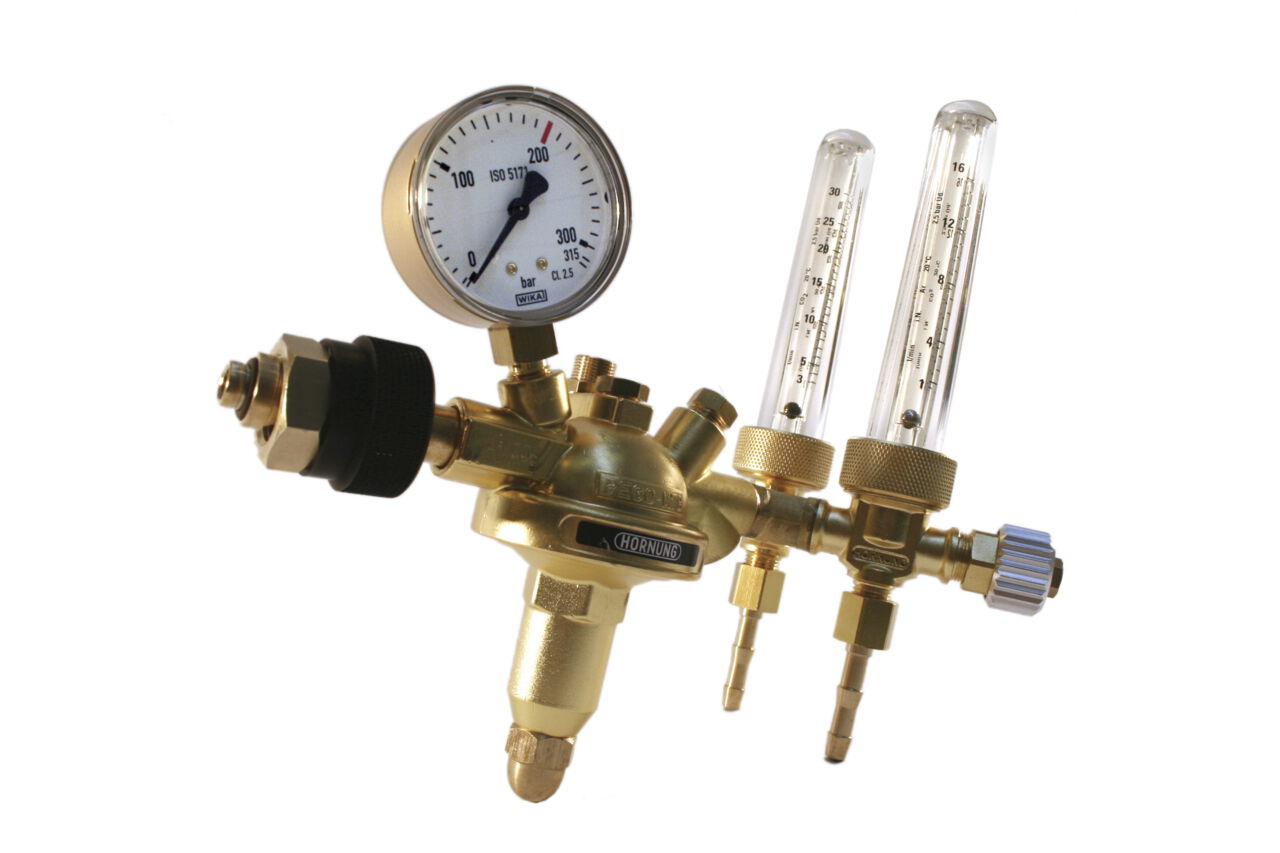

SPECIAL ARGON PRESSURE REGULATOR with twin flowmeter, brass

The cylinder pressure regulator with manual connection reduces the cylinder pressure of compressed gases and gases dissolved under pressure of max. 200 bar (300 bar on request) to a pressure corresponding to the flowmeter. The desired flow rate in l/min can be constantly set on the flowmeter.

Important: This pressure regulator has a constant working pressure of 2.5 bar
to protect the orbital system’s gas flow sensor.

Control range:
Twin flow 1 – 15 l/min, 3 – 25 l/min
Triple flow 1 – 15 l/min, 3 – 25 l/min, 5 – 50 l/min

  • Item number:
  • 1.2.0123

SPECIAL PRESSURE REGULATOR with twin flowmeter for H2 gases, brass

The cylinder pressure regulator with manual connection reduces the cylinder pressure of compressed gases and gases dissolved under pressure of max. 200 bar (300 bar on request) to a pressure corresponding to the flowmeter. The desired flow rate in l/min can be constantly set on the flowmeter.

Important: This pressure regulator has a constant working pressure of 2.5 bar
to protect the orbital system’s gas flow sensor.

Control range:
Twin flow 1 – 15 l/min, 3 – 25 l/min
Triple flow 1 – 15 l/min, 3 – 25 l/min, 5 – 50 l/min

  • Item number:
  • 1.2.0144

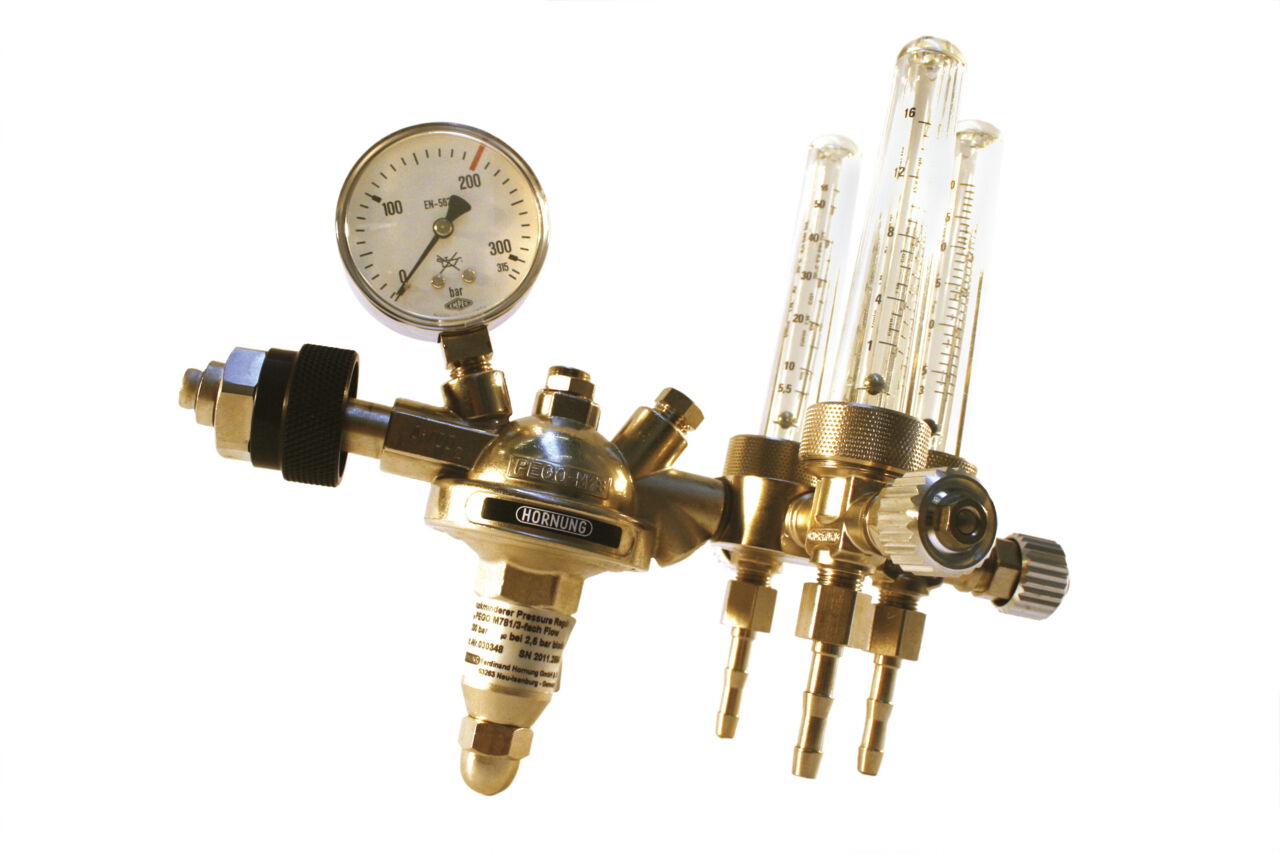

SPECIAL ARGON PRESSURE REGULATOR with triple flowmeters, brass

Pressure regulators with different connections and for use with other gas types / mixed or nickel-plated available on request.

  • Item number:
  • 1.2.0134

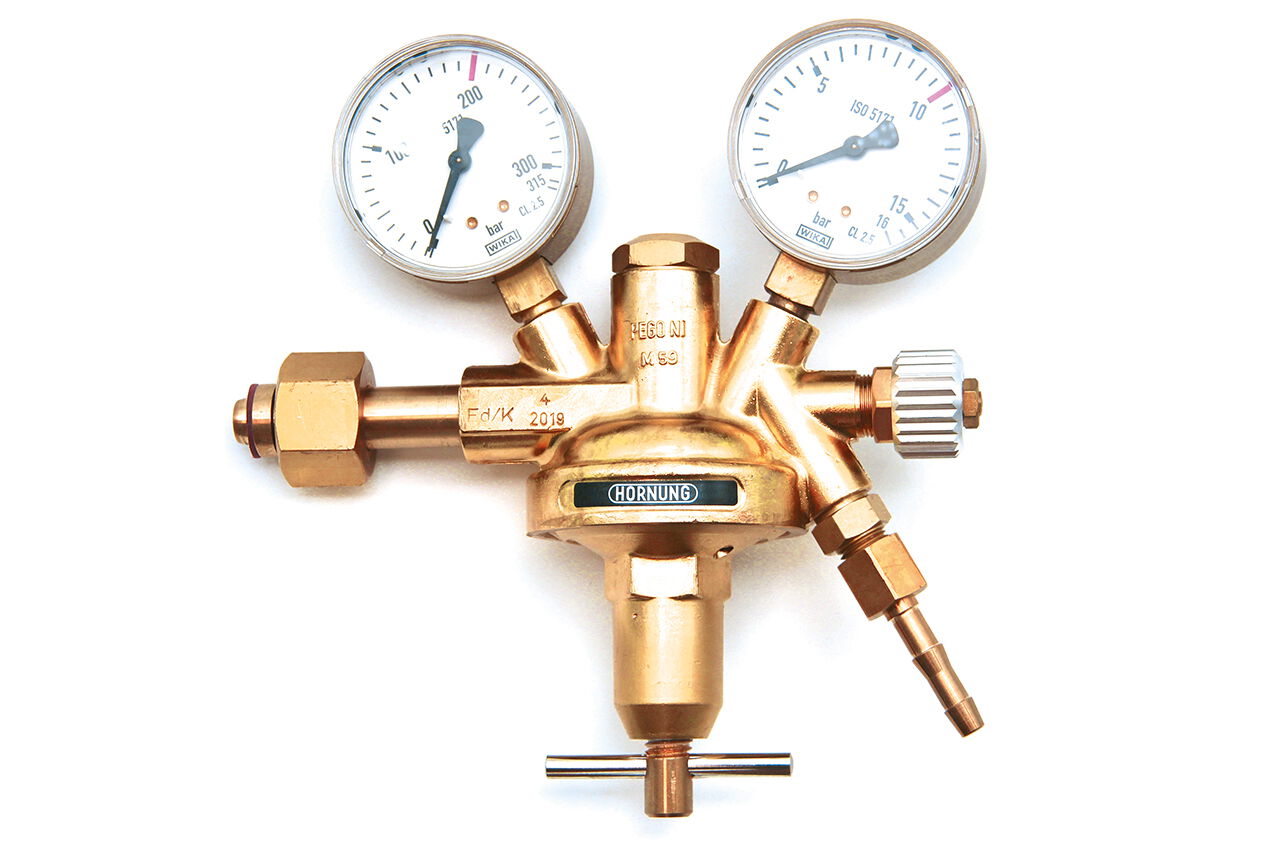

200 / 10 BAR ARGON PRESSURE REGULATOR

(for RBK 60 S pneumatic connection)

  • Art.-Nr.
  • 1.2.0150

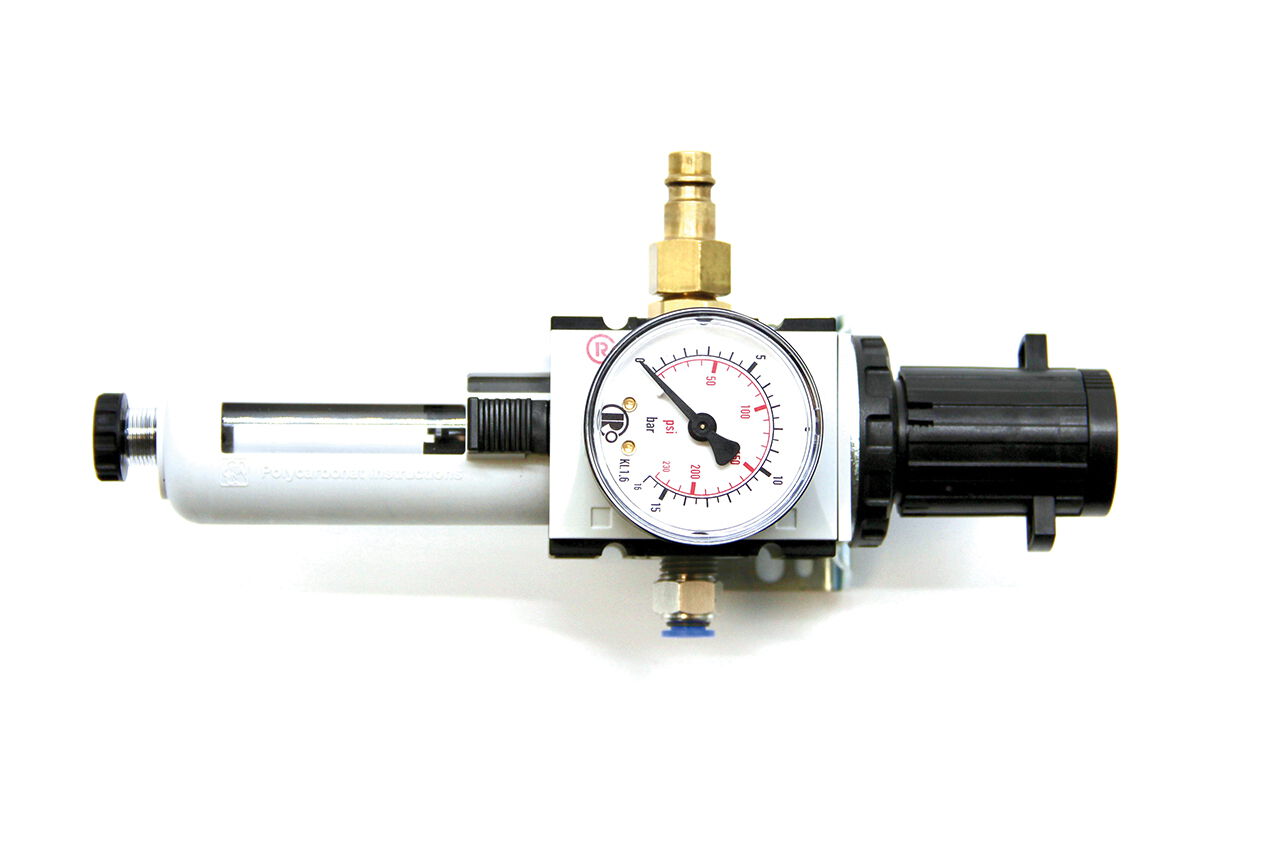

0.5 – 10 BAR COMPRESSED AIR PRESSURE REGULATOR

incl. mounting bracket and inlet and outlet coupling (for RBK 60 S pneumatic connection)
Pressure regulators with different connections and for other gas types or nickel-plated version available on request.

  • Art.-Nr.
  • 1.2.0151

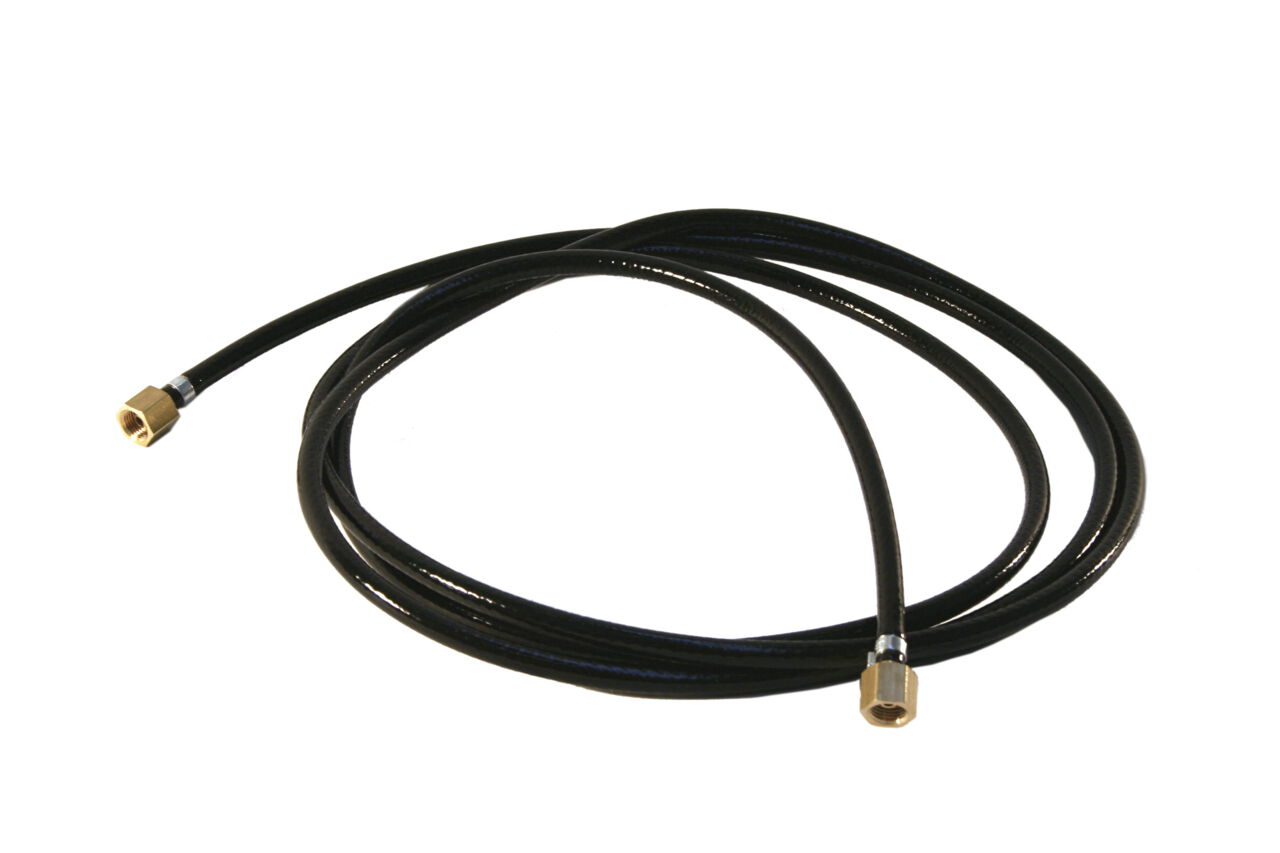

GAS HOSE 3 m

  • Item number:
  • 1.3.0121
  • Lenght
  • 3 m

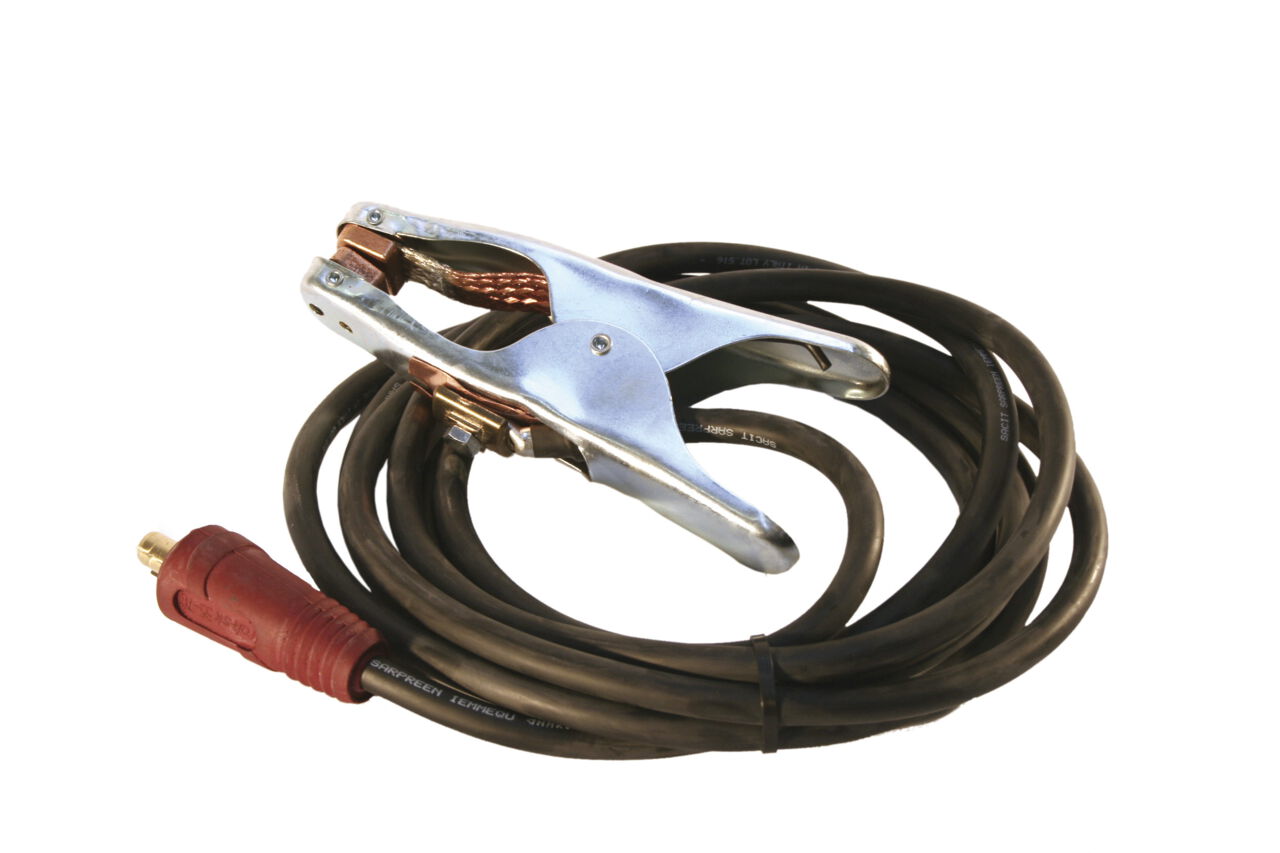

GROUND CABLE 35 mm²

  • Item number:
  • 1.3.0003
  • Lenght:
  • 5 m
  • Size:
  • 35 mm²
  • Voltage:
  • up to 300 A

GROUND CABLE 50 mm²

  • Item number:
  • 1.3.0003
  • Lenght:
  • 5 m
  • Size:
  • 50 mm²
  • Voltage:
  • up to 500 A
