Compact cooling power for stable welding processes
Cooling units such as the COOL 55 and EVO COOL have been developed specifically for use with orbital welding systems. They provide effective cooling of the welding tools, which supports the reliability and quality of the welding process. These units are compact and easy to install, while still offering reliable temperature control for the welding tools. In addition to this, they enable continuous or demand-based cooling, which improves the efficiency and durability of the welding tools.
Technical Data
- Supply voltage: 110 – 240 V (1.4 – 0.6A)
- Cooling system: F / IP 23
- Weight (without coolant): 10.5 kg
- Dimensions (L x W x H): 500 x 340 x 190 mm
- Cooling efficiency: 1.000 W (1 l/min)
- Max. tank capacity: approx. 4 l
- Max. flow rate: 4 l/min
- Max. outlet pressure: 3.5 bar
- Mains frequency: 50 / 60 Hz

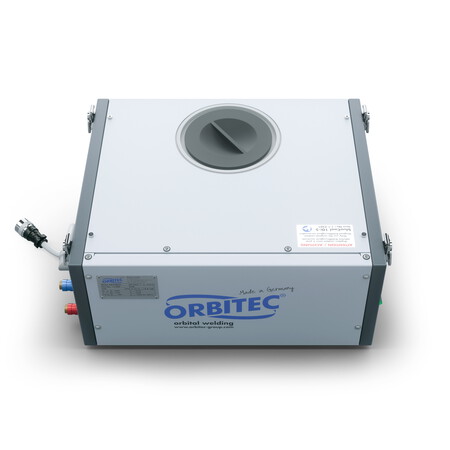

EVO Cool Water Cooling Unit (Autorange)
Water cooling unit for use with the EVO 200 WP or LITE controller and TETRIX 200 in conjunction with water-cooled welding tools.
- Standalone or continuous operation possible
- Temperature-regulated fan control
- Water flow feedback through in-built flowmeter
Package include:
- Water cooling unit
- Inverter / cooling unit (permanently mounted) connection cable
- Fasteners for EVO series
- 4 l blueCool 10i-5 coolant
Item number: 1.3.8000
Accessories and extensions
blueCool 10i-5 Coolant
Frost protection down to -10 °C (PU = 5 l canister)
Item number: 1.1.2501
