Residual oxygen meter with optional differential pressure measurement

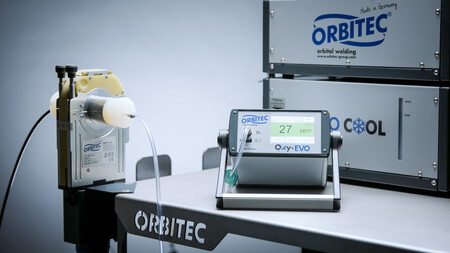

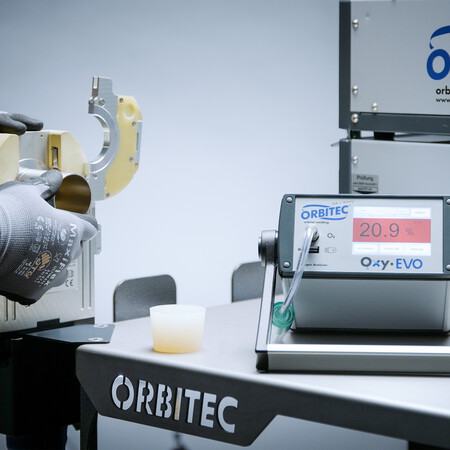

The Oxy EVO oxygen analyser measures the oxygen content before and after welding inside the tube. The switching and alarm values can be individually defined by the user.
Oxy EVO PPA oxygen analyser
The additionally integrated purge pressure analyser module can be used to measure and document the purge gas pressure inside the tube before and during welding.
Oxygen analysers

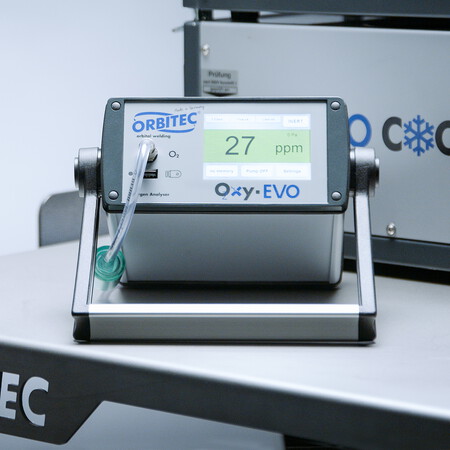

OXY EVO Oxygen Analyser (Autorange)
- Extremely easy menu navigation
- For inert gases and gases containing H2 (max. 10%)
- Measuring cell made of zirconium oxide (maintenance-free)
- 3.5" colour touch display
- USB interface for exporting documentation
- Digital and analogue interface and Bluetooth for communication with our orbital welding controllers and other PSPS
- Activation and evaluation exclusively using the digital interface
- User-definable threshold and alarm adjustment
- Acoustic signal generator
- Display has a coloured background outside the target values
- Autorange 100 – 240 V
Package includes:
- Oxygen analyser
- Power cable
- Hose set, 3 m, incl. filter and probe
- Calibration certificate
- Transport case
Item number: 1.2.5000
Oxy Evo PPA oxygen analyser, including accessories
Technical Data:
- Measuring range: 5 ppm - 21% O2
- Ambient temperature: 0–45° Celsius
- Measuring accuracy: +/- 0.3 mV (EMK Sensor)
- Heat-up time: 3-5 min
- Response time: approx. 2 seconds for changes
- Dimensions (L x W x H): 180mm x 210mm x 85mm without handle
- Main voltage Multirange: 100-240V AC
- Heating cycle load: approx. 40VA
- Standard load: approx. 20VA
- Weight: 2.1 kg
- Input voltage: 24V (via the Oxy EVO)
- Calibrated measuring range: 0 – 2500 Pa
Scope of supply:
- Oxygen analyser
- Mains cable
- Hose set, 3 m, including filter and probe
- Calibration certificate
- Plastic case
- Integrated purge pressure analyser
- Measuring hose, 3 m
- 6 mm T-piece
- Calibration certificate (pressure)
Item number: 1.2.5003
Accessories and extensions

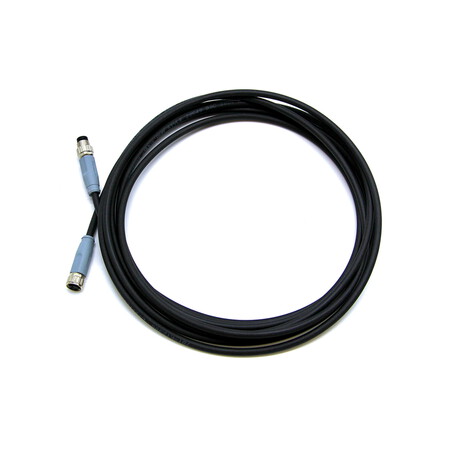

PPA com cable for OXY EVO
For connecting to TIGTRONIC ORBITAL and EVO, 3 m
Item number: 1.3.5035

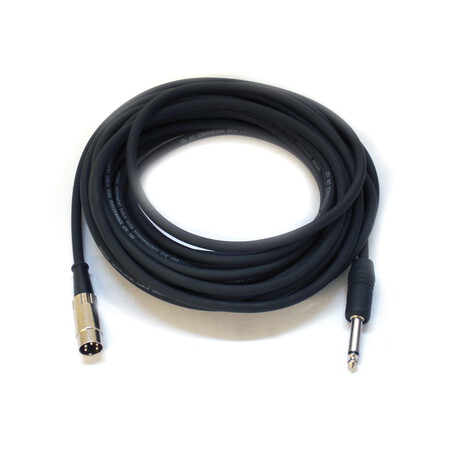

For OXY EVO for connecting to TIGTRONIC ORBITAL and EVO controllers
Item number: 1.3.5011

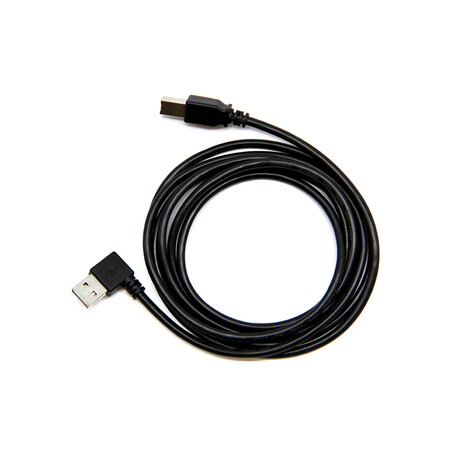

USB data cable
For OXY EVO for connecting to EVO and PC controllers, 2 m
Item number: 1.2.5008

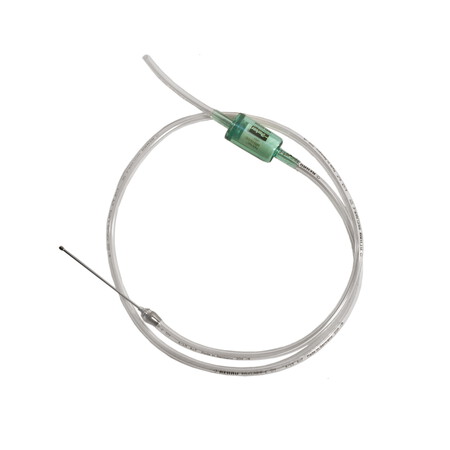

Spare plastic hose
For OXY 2, 3, EVO, 3 m, with particle filter and stainless steel probe
Item number: 1.3.5014

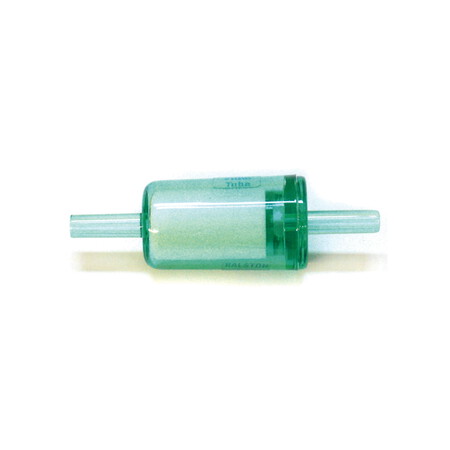

Spare filter
Item number: 1.3.5015
