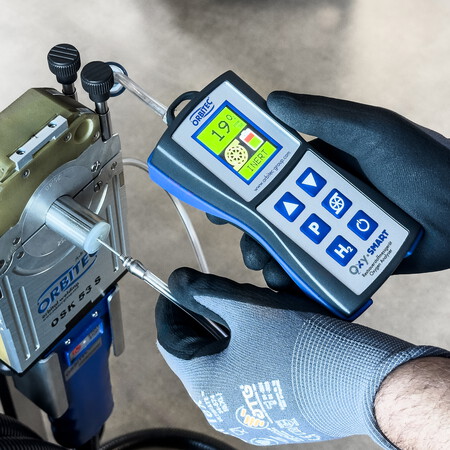

Compact, robust and mobile in use
The compact and convenient format of the Oxy Smart oxygen analyser makes it ideal for mobile use. Its robust design, including a protective rubber frame, is also suitable for use on construction sites.

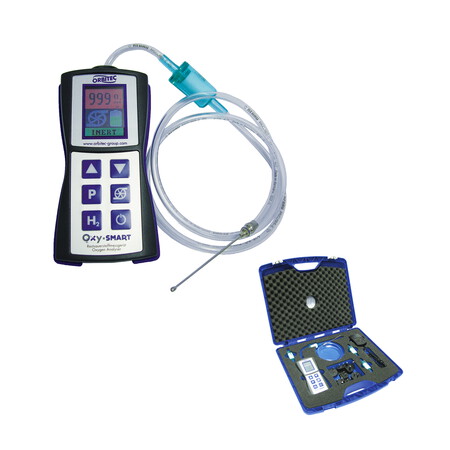

Oxy Smart oxygen analyser, including accessories
- Battery-powered device
- For inert gases
- For gases with H2 content (max. 10 %)
- Measuring cell made of zirconium oxide (maintenance-free), long service life thanks to smart software
- Robust – for use on construction sites (protective rubber frame)
- Protected against dust and splash water, also for use in high humidity
- Intuitive user guidance with symbols
- Colour-illuminated display
- Battery level display
- Error message for malfunctions
Scope of supply:
- Oxygen analyser
- Charging cable with adapter plugs for worldwide use
- Hose set, 1 m, including filters and probe
- Calibration certificate
- Plastic case
Item number: 1.2.5004
Accessories and extensions
Spare plastic hose for OXY SMART
1 m, with particle filter and stainless steel probe
Item number: 1.3.5016
Spare filter
Item number: 1.3.5015
Coupling for flexible purge dam / purge hose, 6 mm OD
Measuring connection for flexible purge dam to OXY
(from SC Profi diameter 57) on request
Item number: 1.1.6234
Purge bung set
For an ID of 10.5 – 49 mm (0.413 – 1.929″) (10 x 2 bungs) in a case
Item number: 1.3.5501
Purge bung set
For an ID of 47 – 107 mm (1.850 – 4.213″) (9 x 2 bungs) in a case
Item number: 1.3.5502
Purge hose with shut-off valve, 8 m
Item number: 1.3.0126
Sintered metal vent
(Suitable for silicone bungs with 6-mm hole from an inner tube diameter of 15 mm)
Item number: 1.3.0127
Aluminium adhesive tape
6 x 15 x 48 mm
Item number: 1.1.4129
Purge bungs
- Conical
- hole: 6 mm (0.236″) diameter
- Material: Silicone, clear
- Temperature-resistant up to 250 °C
Item number: 1.3.55+XX
Flexible purge dams
- Saves gas and time
- Heat resistant up to 340 °C
- Can be used in all positions
- Easy to pull through tube elbows
SC Profi, fully assembled with 2 lip seals (340 °C), connecting axis and connecting hose with a type-21 Rectus nipple
Item number: 1.1.60+XXX
10 m pull rope (insulated) with carabiner
Item number: 1.1.6232
