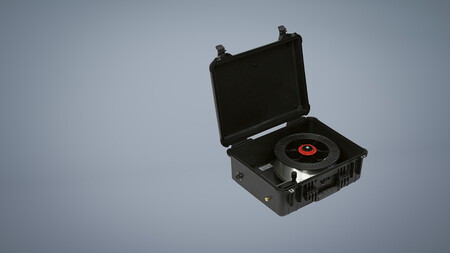

Compact and lightweight wire feed unit mounted in a Peli case for 5kg (ORBIFEED 5) and 15kg (ORBIFEED 15) standard spools.
Constant wire feed for perfect orbital welds
Wire feed units ensure constant feeding of the welding wire during the welding process with open welding systems. This is the only way to meet the high requirements for high-quality welds with orbital welding. Our Orbifeed systems can be used with different wire types and diameters.
Wire feeders Orbifeed

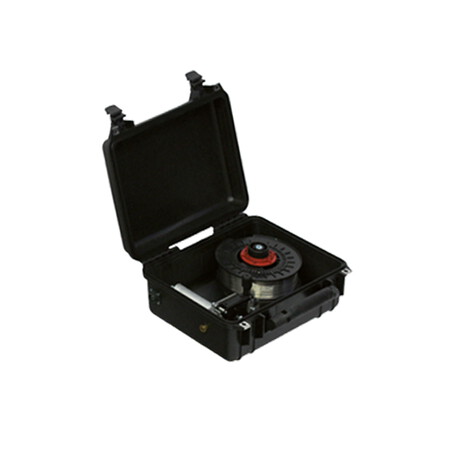

Orbifeed 5 wire feed unit, for 5-kg spools
Package includes:
- Water-resistant and dust-proof Peli case
- Four-roller drive mechanism
- Delivery hose with inlet and outlet nozzles
- Spool adapter
- Wire feed console on OSW / TURN
- Wire feed unit / controller connection cable
Technical Data: Orbifeed 5
- Motor voltage and power: 24 VDC, 6 W
- Weight: approx. 7 kg
- Dimensions (L x W x H): 406 x 330 x 174 mm
- Wire spools: Standard spools 5 kg
- Wire diameter: 0,8 / 1,0 mm
Item number: 1.3.1701

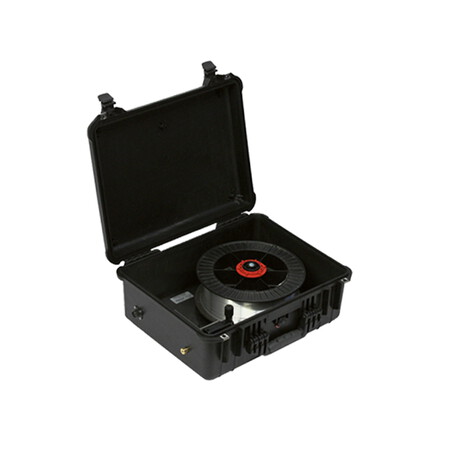

Orbifeed 5 wire feed unit, for 15-kg spools
Package includes:
- Water-resistant and dust-proof Peli case
- Four-roller drive mechanism
- Delivery hose with inlet and outlet nozzles
- Spool adapter
- Wire feed console on OSW / TURN
- Wire feed unit / controller connection cable
Technical Data: Orbifeed 15
- Motor voltage and power: 24 VDC, 6 W
- Weight: approx. 8 kg
- Dimensions (L x W x H): 525 x 436 x 217 mm
- Wire spools: Standard-Spulen 5 and 15 kg
- Wire diameter: 0,8 / 1,0 mm
Item number: 1.3.1702
Accessories and extensions
Spare feed hose for Orbifeed, complete, 4.5 m
Item number: 1.3.1706

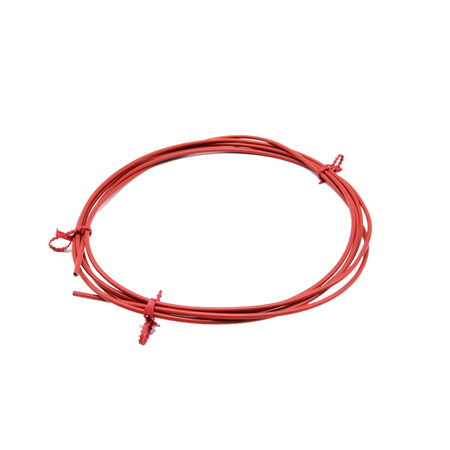

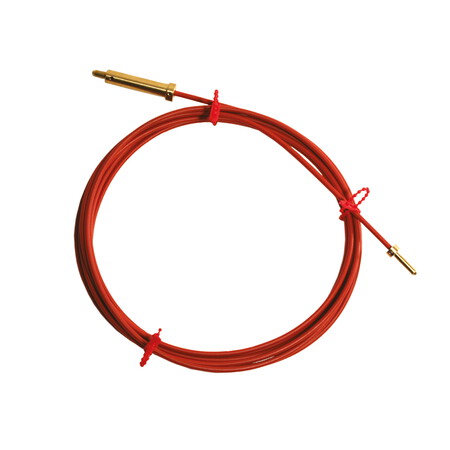

Spare wire feed spiral, red, 4.5 m
Item number: 1.3.1719

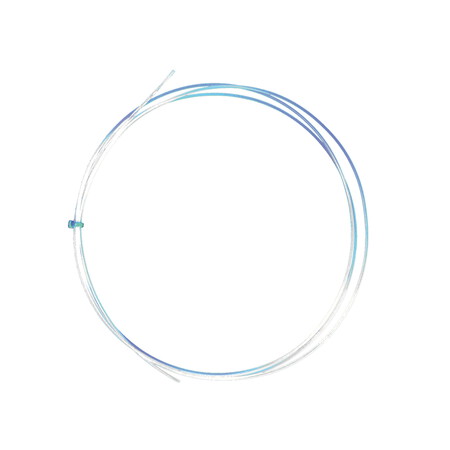

Spare wire core, Teflon, for Orbifeed, 4.7 m
Item number: 1.3.1712

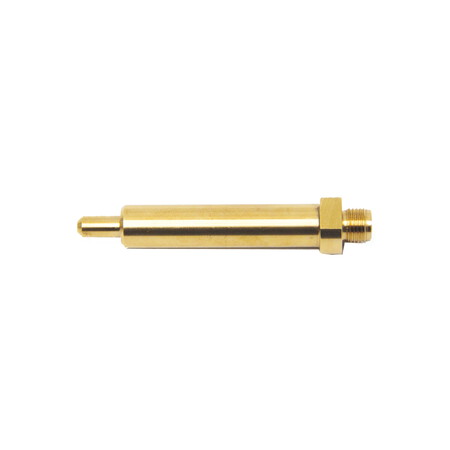

Spare wire inlet nozzle
Item number: 1.3.1704

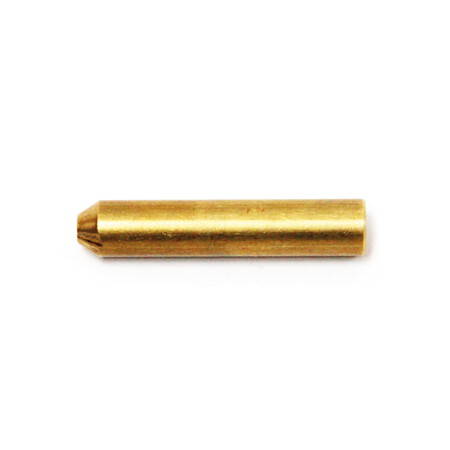

Spare wire outlet nozzle
Wire diameter 0.8 mm
Item number: 1.3.1720
Item number: 1.3.1720
Wire diameter 1.0 mm
Item number: 1.3.1705
Item number: 1.3.1705

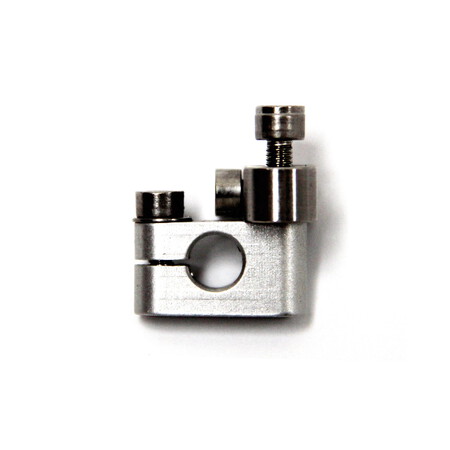

Spare wire console, aluminium
OSW 40
Item number: 1.0.1639
Item number: 1.0.1639
OSW 80-275
Item number: 1.0.1634
Item number: 1.0.1634

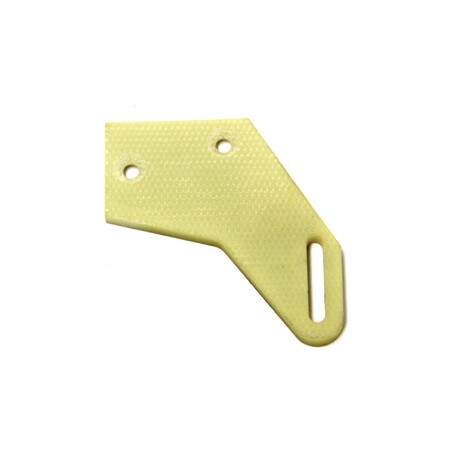

Spare wire console, GRP
OSW 40
Item number: 1.0.1619
Item number: 1.0.1619
OSW 80 – 275 “standard”
Item number: 1.0.1630
Item number: 1.0.1630
OSW 80 – 275 “internal”
Item number: 1.0.1638
Item number: 1.0.1638
