Standard control in its 5th generation with cutting-edge technology
Our proven Tigtronic standard controller is now being sold in the 5th generation. All installed electronic components are based on the latest technology and are powerful and efficient. A cooling unit or AVC upgrade kit can optionally be used.
Tigtronic Series

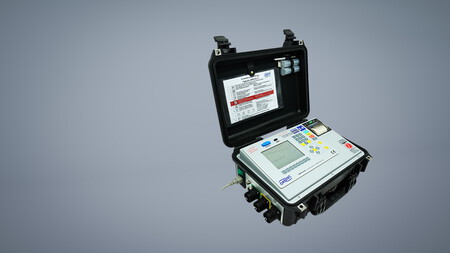

Tigtronic Orbital 5.2 (Autorange)
The 5th generation of our reliable, tried-and-tested standard controller. Can be connected to TETRIX 200 or TETRIX 351.
- 5.7″ display
- Very easy guided multilingual user interface with programming guide (outer tube diameter, wall thickness and welding head ID)
- Gas-cooling and water-cooling monitoring
- Option for welding in up to 6 sectors, continuously or in step mode
- Individual changing of the calculated program parameters, also with the current percentage button
- Diagram of the weld progress
- Real-time monitoring of the welding parameters
- Integrated day counter (allocation to isometries and weld numbers)
- Stores up to 99 welding programs
- Stores up to 400 actual parameters
- Data transfer of welding parameters and programs via USB port
- Software updates possible via USB
- Troubleshooting program
- Option for connecting a remote control (device can be controlled from the display without a remote control)
- Option for connecting oxygen analysers and a purge pressure analyser
- Integrated wire card
- Integrated thermal printer (longlife paper) with multilingual printout of the actual/target parameters
- Compact and lightweight with outer dimensions (L x W x H) of 405 x 325 x 170 mm and a weight of only 6.5 kg
- Autorange 90 – 260 V
Optional:
- COOL 50 or EVO COOL cooling unit
- AVC upgrade kit
Item number: 1.3.0052
Tigtronic Orbital 5.3 (Autorange)
As for Orbital 5.2
- With special software only for RBK tube-to tubesheet weld heads
Item number: 1.3.0053

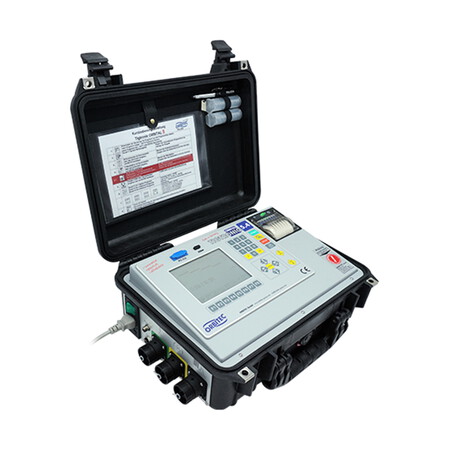

Tigtronic Orbital 5.4 (Autorange)
The 5th generation of our reliable, tried-and-tested standard controller. Can be connected to TETRIX 200 or TETRIX 351.
- 5.7″ display
- Very easy guided multilingual user interface with programming guide (outer tube diameter, wall thickness and welding head ID)
- Gas-cooling and water-cooling monitoring
- Orbital tack mode can be activated
- Option for welding in up to 6 sectors, continuously or in step mode
- Individual changing of the calculated program parameters, also with the current percentage button
- Changing of the current and wire feed parameters possible, also during welding
- Diagram of the weld progress
- Real-time monitoring of the welding parameters
- Integrated day counter (allocation to isometries and weld numbers)
- Stores up to 99 welding programs
- Stores up to 400 actual parameters
- Data transfer of welding parameters and programs via USB port
- Software updates possible via USB
- Troubleshooting program
- Option for connecting a remote control (device can be controlled from the display without a remote control)
- Option for connecting oxygen analysers and a purge pressure analyser
- Integrated wire card
- Integrated thermal printer (longlife paper) with multilingual printout of the actual/target parameters
- Compact and lightweight with outer dimensions (L x W x H) of 405 x 325 x 170 mm and a weight of only 6.5 kg
- Autorange 90 – 260 V
Optional:
- COOL 50 or EVO COOL cooling unit
- AVC upgrade kit
Scope of supply:
- Controller
- Mains cable
- Interface for cable controller <> power source

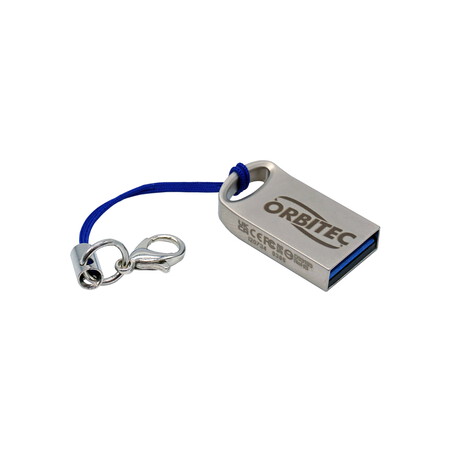

- USB flash drive (1 GB)
- 2 storage containers for electrodes
- Ballpoint pen with touchscreen function and LED light
Item number: 1.3.0054
Accessories and extensions
Orbitcontrol 3 remote control
8-m cable remote control for all orbital welding controllers.
- Activate and deactivate the welding process
- Control the rotation
- Control the wire feed
- Control the AVC
- Visual status display
Item number: 1.3.0030

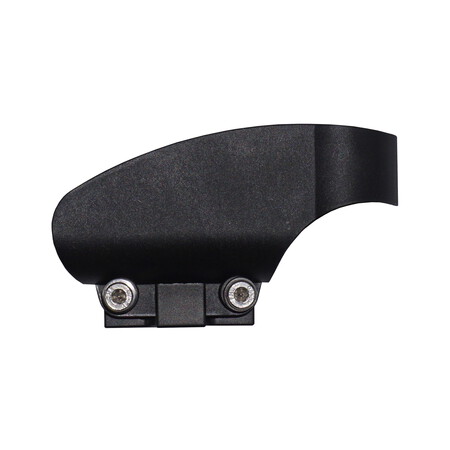

8 m cable remote control for all orbital controls.
Item number: 1.3.003003
Dokutronic 2.2 documentation software
For all Tigtronic controllers for backing up, managing and editing the weld documentation (actual/target parameters) on a PC, in German and English
Item number: 1.3.0207

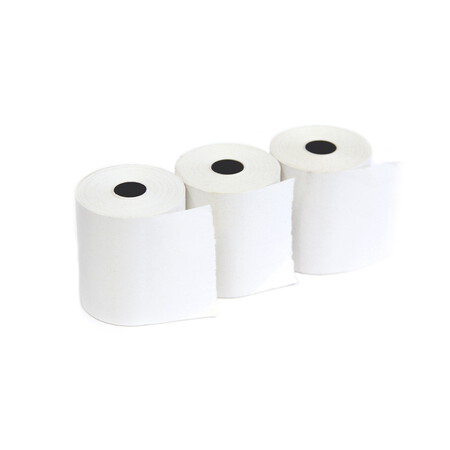

Spare paper rolls for Tigtronic controllers
Paper rolls for integrated printer, pack of 3
Item number: 1.3.0002

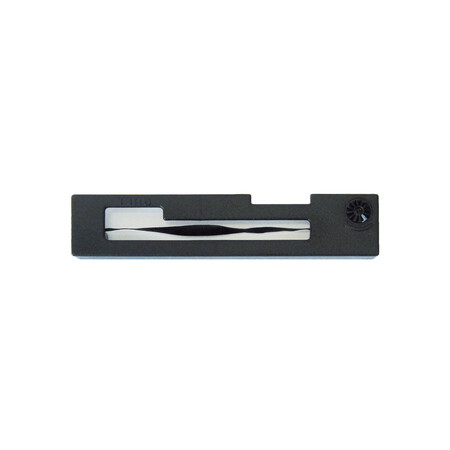

Spare ribbon cartridge for controllers with integrated printer
Colour ribbon cartridge for TIGTRONIC ORBITAL 4 integrated printer
Item number: 1.3.0003

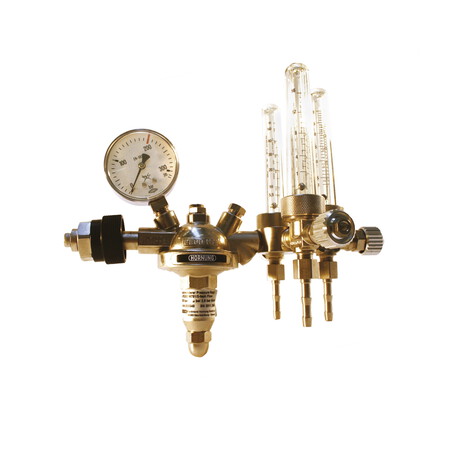

SPECIAL ARGON PRESSURE REGULATOR with triple flowmeters, brass
Pressure regulators with different connections and for use with other gas types / mixed or nickel-plated available on request.
Item number: 1.2.0134
0.5 – 10 BAR COMPRESSED AIR PRESSURE REGULATOR
incl. mounting bracket and inlet and outlet coupling (for RBK 60 S pneumatic connection). Pressure regulators with different connections and for other gas types or nickel-plated version available on request.
Item number: 1.2.0151

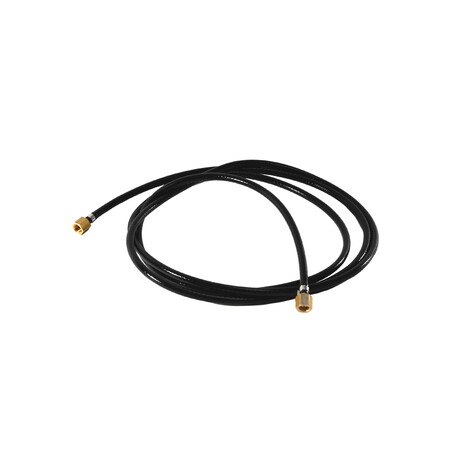

GAS HOSE 3 m
Lenght 3 m
Item number: 1.3.0121

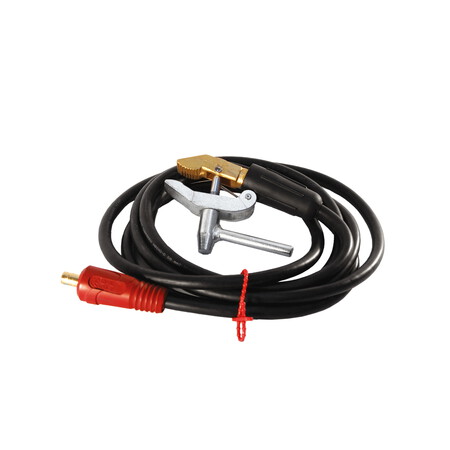

GROUND CABLE 35 mm²
Lenght: 5 m / Size: 35 mm² / Voltage: up to 530 A
Item number: 1.3.0125
GROUND CABLE 50 mm²
Lenght: 5 m / Size: 50 mm² / Voltage: up to 500 A
Item number: 1.3.0146
200 / 10 BAR ARGON PRESSURE REGULATOR
(for RBK 60 S pneumatic connection)
Item number: 1.2.0150
AVC Upgrade Kit for Tigtronic Controllers AVC Card for DC Motors Upgrade Kit (Turn)
for Tigtronic controllers
Item number: 1.3.0031
AVC upgrade kit – card for step motors (RBK S)
for Tigtronic controllers
Item number: 1.3.0036
SPECIAL PRESSURE REGULATOR with twin flowmeter for H2 gases, brass
The cylinder pressure regulator with manual connection reduces the cylinder pressure of compressed gases and gases dissolved under pressure of max. 200 bar (300 bar on request) to a pressure corresponding to the flowmeter. The desired flow rate in l/min can be constantly set on the flowmeter.
Important: This pressure regulator has a constant working pressure of 2.5 bar to protect the orbital system’s gas flow sensor.
Control range:
- Twin flow 1 – 15 l/min, 3 – 25 l/min
- Triple flow 1 – 15 l/min, 3 – 25 l/min, 5 – 50 l/min
Item number: 1.2.0144

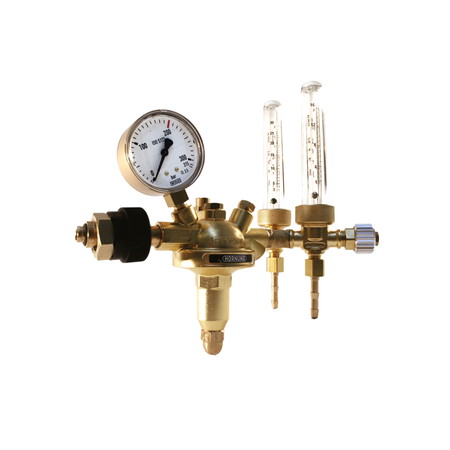

SPECIAL ARGON PRESSURE REGULATOR with twin flowmeter, brass
The cylinder pressure regulator with manual connection reduces the cylinder pressure of compressed gases and gases dissolved under pressure of max. 200 bar (300 bar on request) to a pressure corresponding to the flowmeter. The desired flow rate in l/min can be constantly set on the flowmeter.
Important: This pressure regulator has a constant working pressure of 2.5 bar to protect the orbital system’s gas flow sensor.
Control range:
- Twin flow 1 – 15 l/min, 3 – 25 l/min
- Triple flow 1 – 15 l/min, 3 – 25 l/min, 5 – 50 l/min
Item number: 1.2.0123
