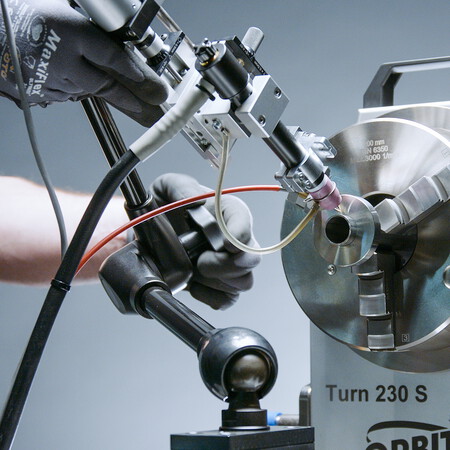

Turn 230 S turntable

Quick change meets precision

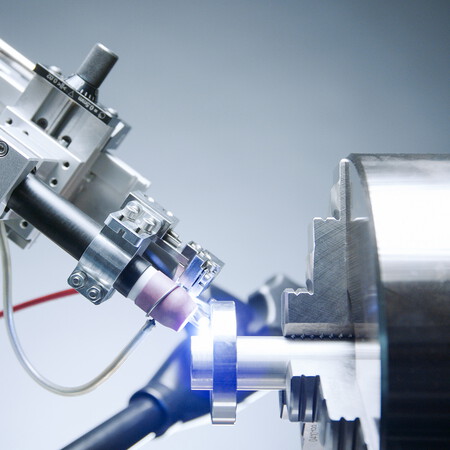

The Turn 230 S turntable features a quick change system that enables efficient processing of components with different tube diameters. The continuously swivelling arm and the hollow shaft, through which the inside of the component can be purged via the central axis, enable processing at the highest level. Its flexible adjustment options make the turntable the right solution for any component.

Everything a welding turntable must be able to do

Securely hold non-standard components
Rotate the workpiece around the torch for even distribution of welding energy and melt
Precisely align the TIG torch with the component
Process multiple workpieces with the same setup: high production speed with reduced welding defects
Easy operation and high flexibility
Robust and durable for industrial use

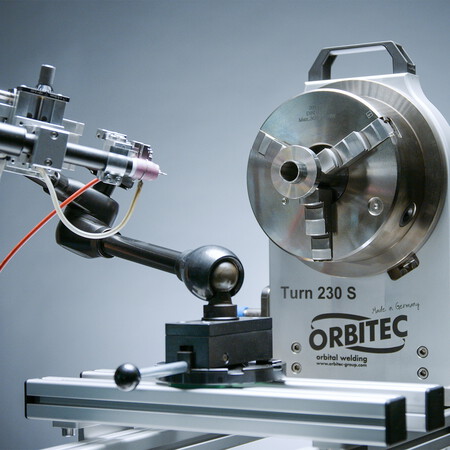

Turn 230 S turntable

Turn table, especially suitable for orbital components with higher quantities and can be connected to all Orbitec controllers.

Scope of application:

Tube size range: OD 10 – 230 mm | 0.393 – 9.055"
Max. load in horizontal position: 50 kg

Technical Data:

Chuck: Three-jaw chuck with axis adjustment
Swivel range: 0 – 90° stepless
Power transmission: max. 300 A
Weight: 88 kg
Dimensions (L x W x H): 1.020 x 360 x 750 mm

Package includes:

Turn table
Three-jaw chuck
Interchangeable jaws
Chuck key
Robust articulated arm with central mechanical clamping
Ground cable
Interconnection cable with wire and AVC outlet

Special versions available on request:

Pneumatic torch adjustment
Pneumatic centring and clamping
Pneumatic tailstock
Special diameters up to 1.000 mm
Special lengths and complete workstation equipment available on request
Special torch consumables

Item number: 1.2.1858

Accessories and extensions

To meet the high demands of orbital welding, we offer customized adaptations and various upgrade kits for the welding turntable Turn 230 S. On request, the torch can be mounted using a manual adjustment unit. Alternatively, the torch distance can be automatically set and adjusted via an arc voltage control (AVC). In addition, a cold wire feeder with different wire consoles can be integrated.

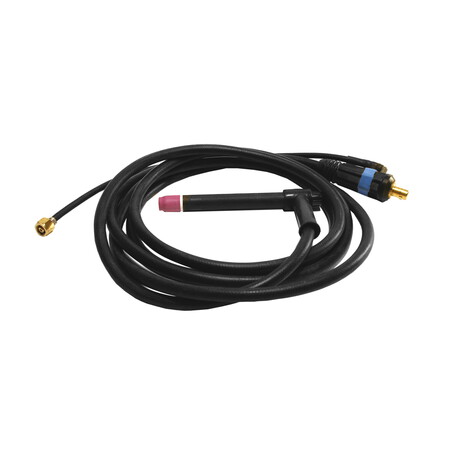

TURN 230 S machine torch with hose package 4 m

gas-cooled, equipped with torch consumables and tungsten electrode Ø 2.4 mm
ED: AC: 105 A, DC: 220 A, 60% (10 min.)

Special lengths and versions with a higher ED available on request.

Item number: 1.2.1814

TURN 230 S machine torch with hose package 4 m

gas-cooled, equipped with torch consumables and tungsten electrode Ø 2.4 mm
ED: AC: 105 A, DC:150 A, 60% (10 min.)

Special lengths and versions with a higher ED available on request.

Item number: 1.2.1814

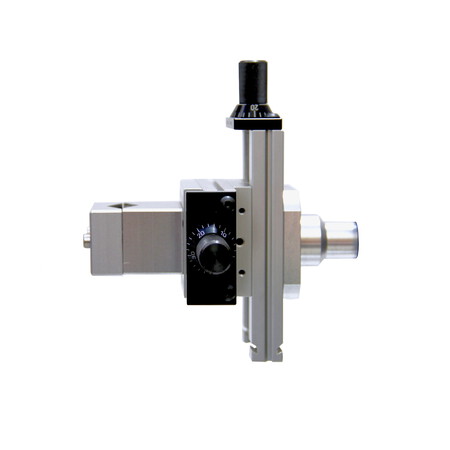

Manual adjustment unit for Turn 230 S using cross support

Slide width 50 mm, torch travel 50 mm, lateral adjustment 30 mm incl. torch clamp OD 20 mm incl. mounting flange
(Special torch clamp OD 30 mm available on request)

Item number: 1.2.1861

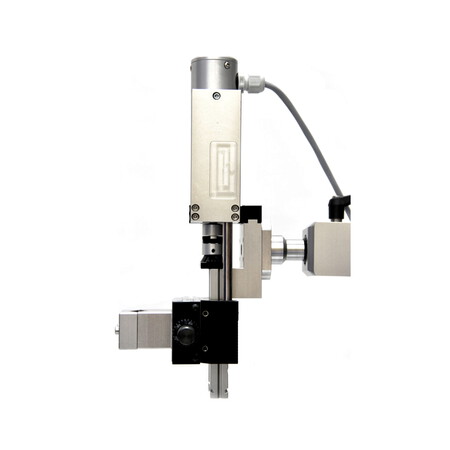

AVC unit assembly for Turn 230 S

incl. AVC motor with limit switching and 8 m connection cable, slide width 50 mm, torch travel 50 mm, lateral adjustment 30 mm incl. torch clamp OD 20 mm incl. mounting flange
(Special torch clamp OD 30 mm available on request)

Item number: 1.2.1859

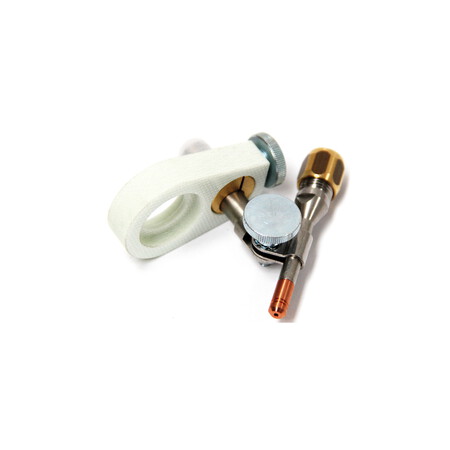

Wire console for Turn 230 S

incl. wire outlet nozzle and three nozzle tips for 0.8 / 1.0 / 1.2 mm

Item number: 1.2.1852

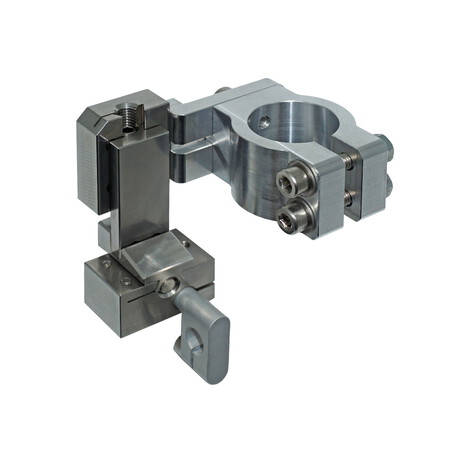

Comfort wire console for Turn 230 S

(3D adjustable via linear unit)

Item number: 1.2.1869

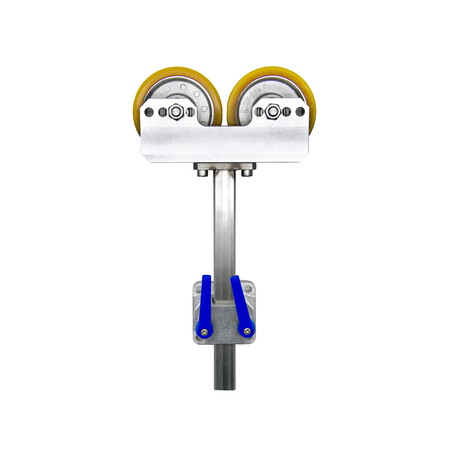

Tube support for Turn 230 S

Item number: 1.2.1860

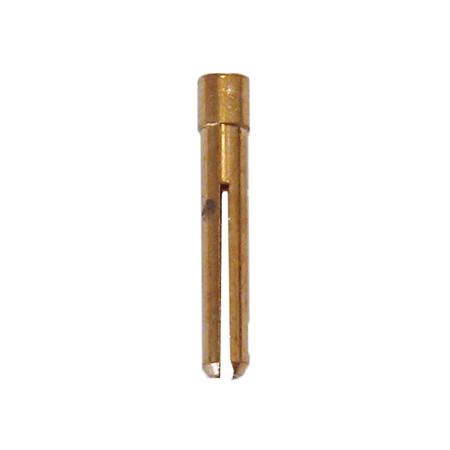

OSW 40 CLAMP SLEEVE for torch, gas-cooled, Ø 1.6 mm, length 16 mm
Item number: 1.0.1616

OSW 40 CLAMP SLEEVE for torch, gas-cooled, Ø 2.4 mm, length 16 mm
Item number: 1.0.1623

OSW 40 CLAMP SLEEVE for torch, water-cooled, Ø 1.6 mm, length 17 mm
Item number: 1.0.1640

OSW 40 CLAMP SLEEVE for torch, water-cooled, Ø 2.4 mm, length 17 mm
Item number: 1.0.1641

OSW 80 – 275CLAMP SLEEVE, manual torch, Ø 1.6 mm
Item number: 1.0.1626

OSW 80 – 275 CLAMP SLEEVE, manual torch Ø 2.4 mm
Item number: 1.0.1627

CLAMP SLEEVE, TURN, Ø 1.6 mm
Item number: 1.0.1818

CLAMP SLEEVE, TURN, Ø 2.4 mm
Item number: 1.2.1819

CLAMP SLEEVE, RBK 60 S, Ø 2.4 mm
Item number: 1.3.3076

CLAMP SLEEVE, RBK 60 S, Ø 3.2 mm
Item number: 1.3.3089

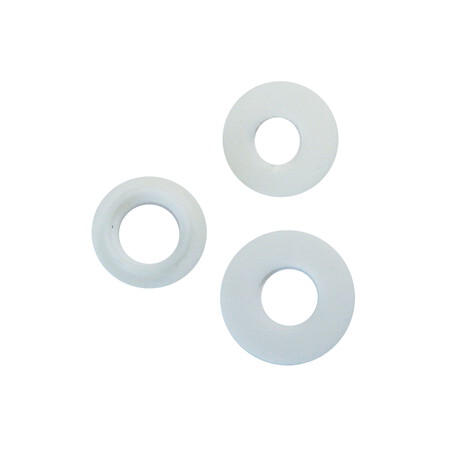

TEFLON INSULATORS

Teflon Insulator OSW 40
Item number: 1.0.1618

Teflon Insulator OSW 80 – 275
Item number: 1.0.1629

Teflon Insulator for Glass Gas Nozzle
Item number: 1.0.1051

Teflon Insulator TURN, Hand Torch
Item number: 1.2.1820

Teflon Insulator RBK 60 S
Item number: 1.3.3078

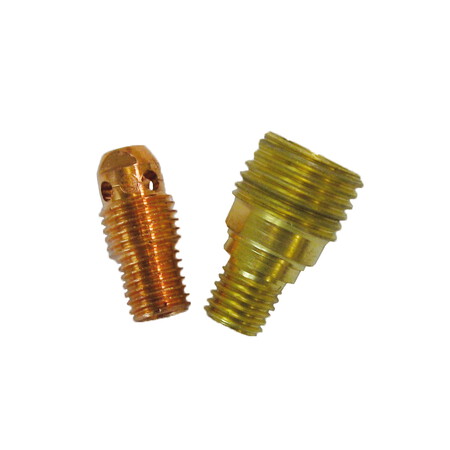

Gas lens OSW 40 Ø 1.6 mm
Item number: 1.0.1620

Gas lens OSW 40 Ø 2.4 mm
Item number: 1.0.1629

Gas lens OSW 80-275, TURN, hand torch Ø 1.6 mm
Item number: 1.0.1631

Gas lens OSW 80-275, TURN, hand torch Ø 2.4 mm
Item number: 1.0.1632

Gas lens for glass gas nozzle OSW 80-275, TURN, Ø 2.4 mm
Item number: 1.3.1049

Gas lens RBK 60 S Ø 2.4 mm
Item number: 1.3.3079

Gas lens RBK 60 S Ø 3.2 mm
Item number: 1.3.3096

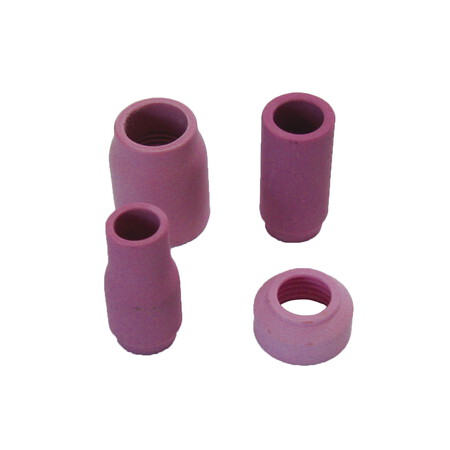

Other gas cups available on request.

OSW 40 gas cup
Item number: 1.3.1046

OSW 80 – 275 gas cup, TURN, size 8
Item number: 1.3.1146

RBK 60 S gas cup, size 7
Item number: 1.3.3077

Gas cup, manual torch, size 6
Item number: 1.3.1911

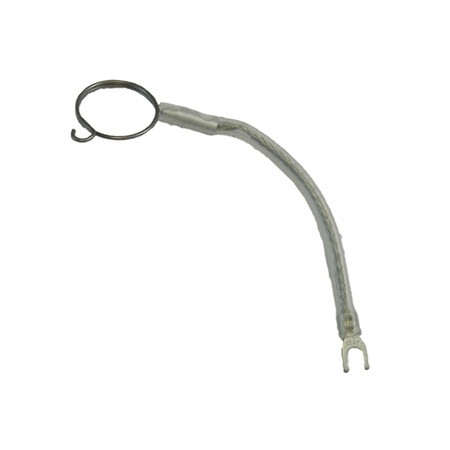

TURN ignition aid, 15 mm diameter, 150 mm long
Item number: 1.2.1803

RBK 60 S ignition aid, TURN, 16 mm diameter, 180 mm long
Item number: 1.3.3088

RBK 60 S ignition aid, TURN, 24 mm diameter, 160 mm long
Item number: 1.3.3073

AVC Upgrade Kit for Tigtronic Controllers AVC Card for DC Motors Upgrade Kit (Turn)

for Tigtronic controllers

Item number: 1.3.0031

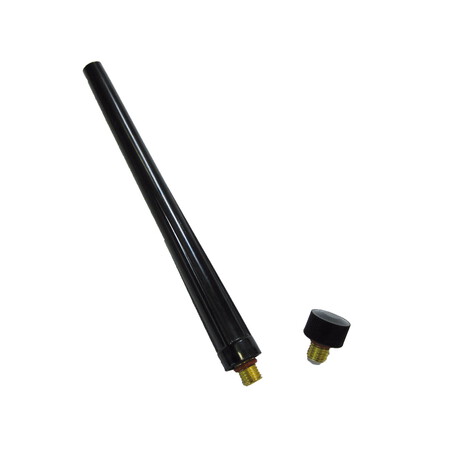

Torch caps

OSW 40 torch cap for water-cooled torch
Item number: 1.0.1615S

OSW torch cap
Item number: 1.3.1147

TURN torch cap
Item number: 1.2.1817

Torch cap, manual torch
Item number: 1.3.1910

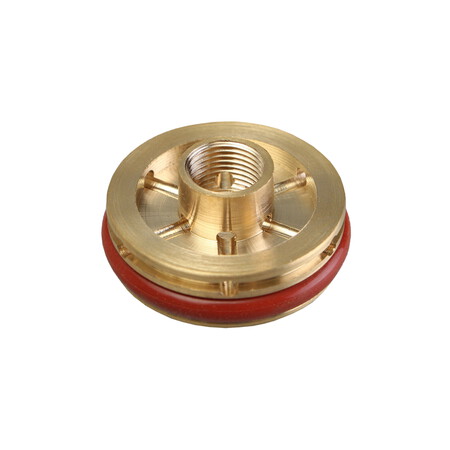

GAS LENS HOLDER

for glass gas nozzle

Item number: 1.0.1050

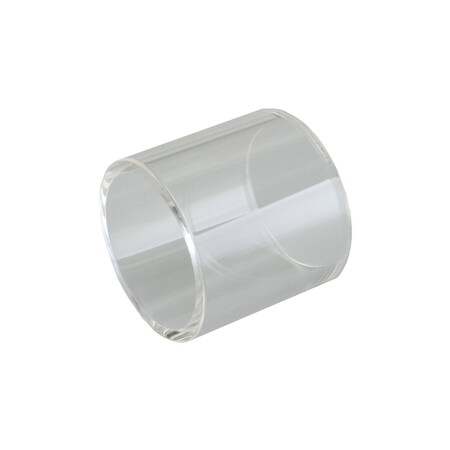

GLASS GAS NOZZLE

OSW 80-275, TURN

Item number: 1.3.1048

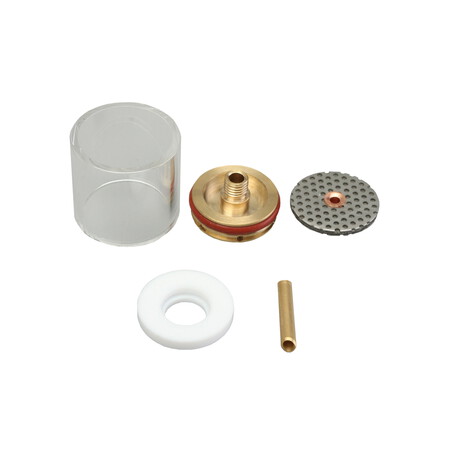

BURNER WEAR PART BOX GLASS GAS NOZZLE

1 burner cap
1 clamping sleeve
1 Teflon insulator
1 gas lens
1 gas lens holder
1 glass gas nozzle

Item number: 1.0.1052

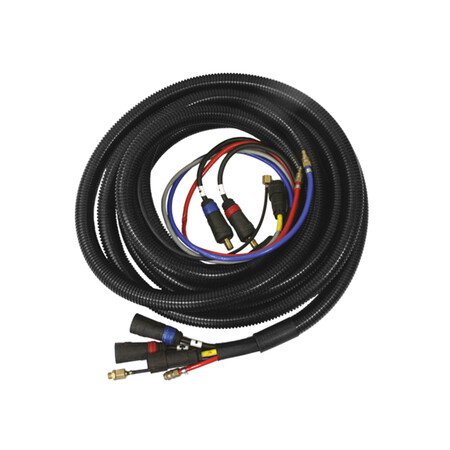

Extension hose package, 8 m, gas-cooled

Item number: 1.3.2005

Extension hose package, 8 m, combined gas and water cooling

Item number: 1.3.2006
